21kg ultra-light charged coating robot RH-TF01S2
The coating robot can coat 10kv/35kv bare conductors with electrically charged insulation.The robots and drones work in tandem to automatically go on-line.It’s intelligent and easy to operate and no need for insulating aerial device or aerial workers. The coating robot is suitable for a wide rage of terrains, especially the environment where insulating aerial device can not pass and is very lightweight and portable.
Classification
Contact：
Product Details
Introduction

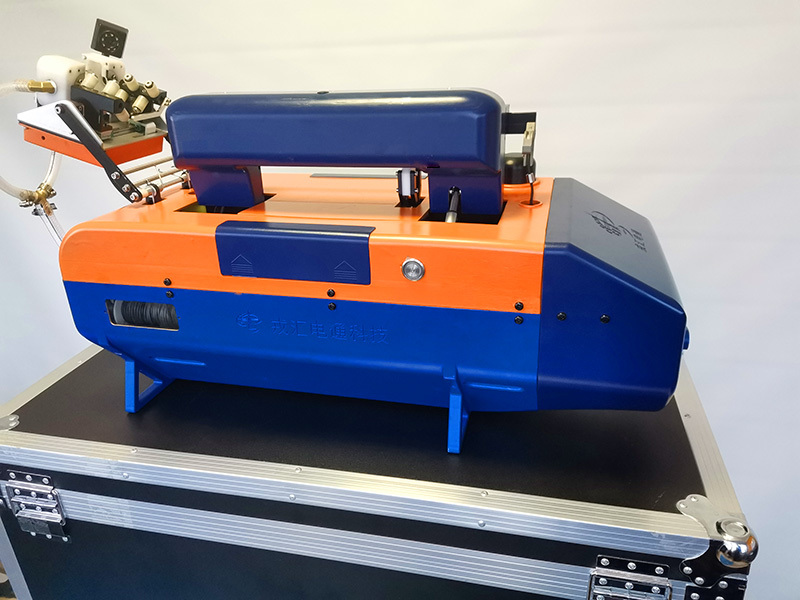

1. Ultralight: RH-TF01S2
The coating robot can carry out live working for insulation transformation of overhead bare conductors of 10kV/35kV power grid distribution lines.
2. Without the help of insulating aerial device, the coating robot uses the ground ejection gun(or throwing drone) to throw the traction rope over the line, then the hook will be hung on the wire and realize “automatic on-line” with one button.
 |
 |
 |
 |

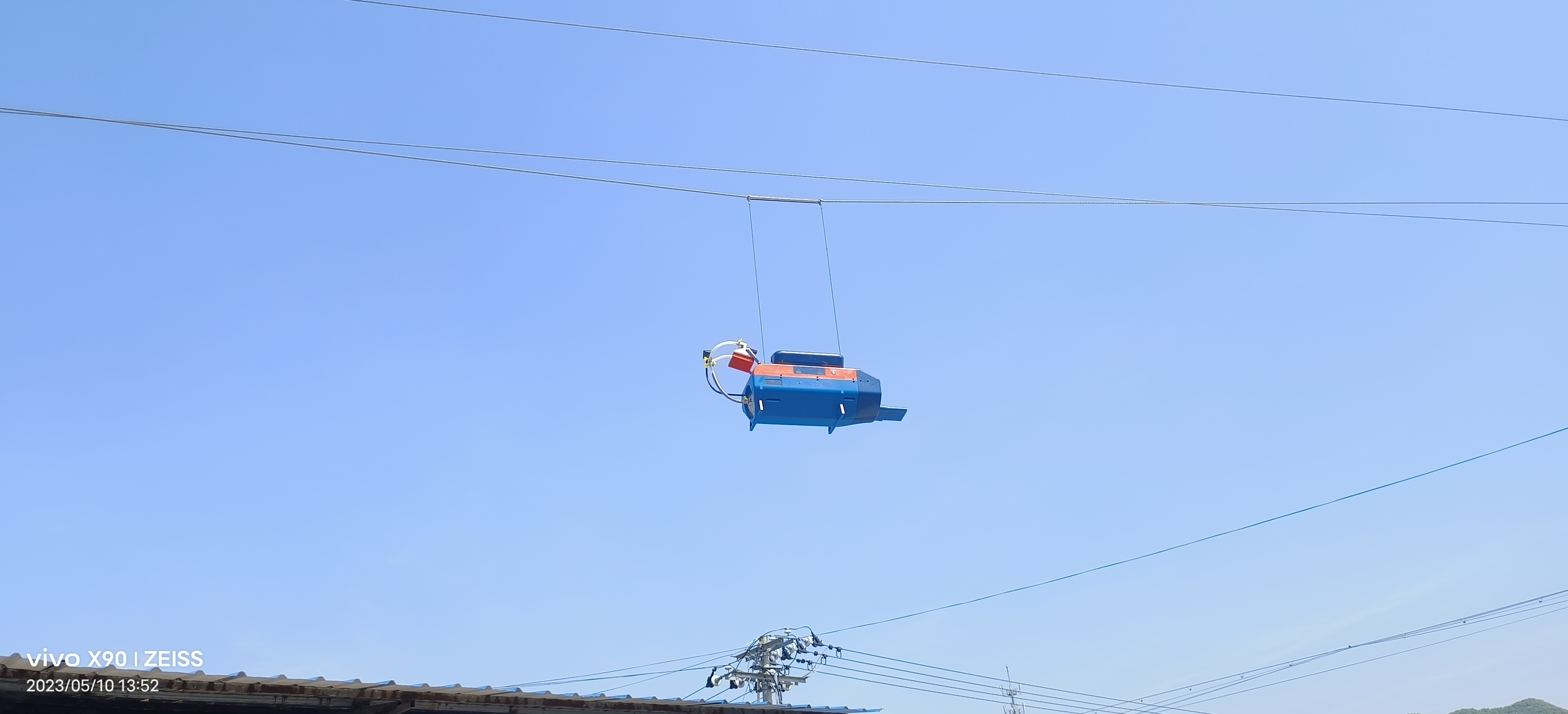

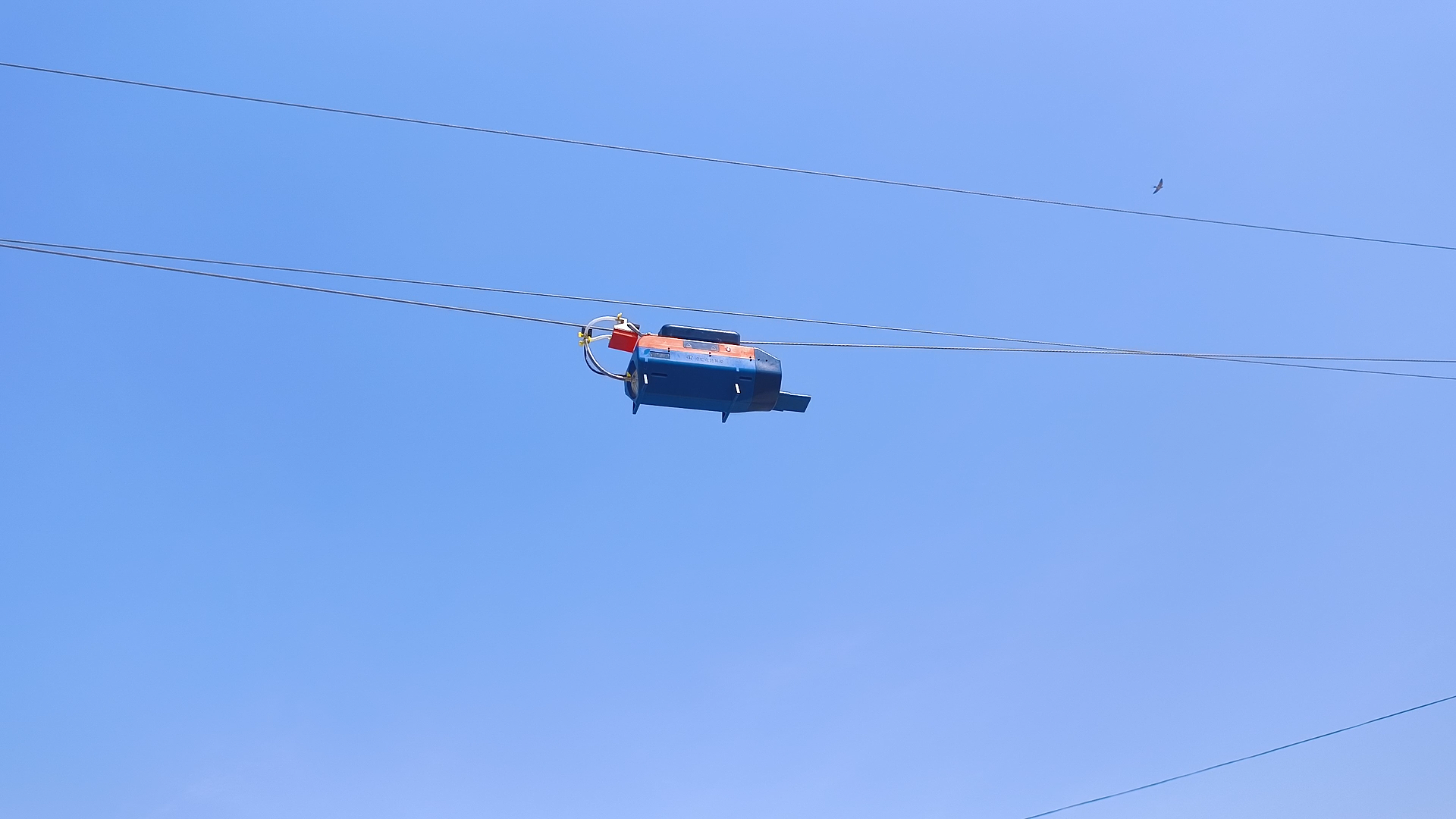

On-site construction drawing of ultra-light charged coating robot

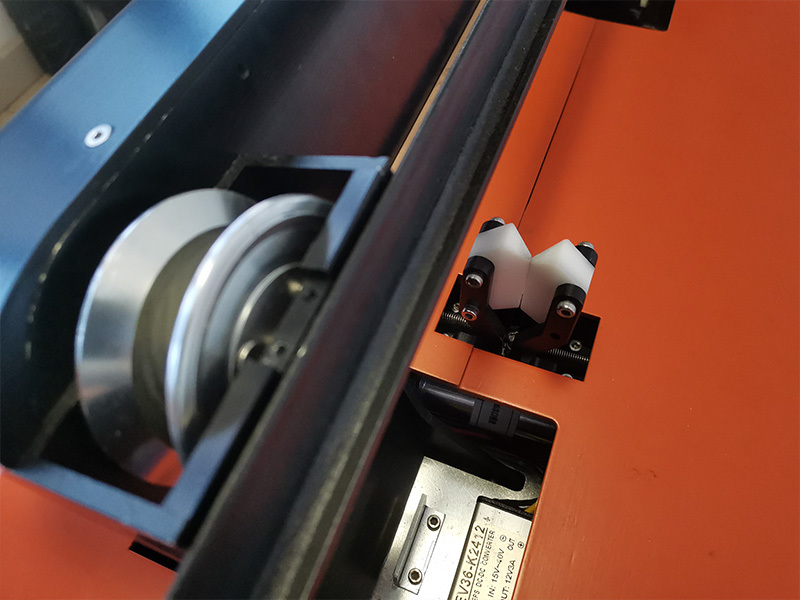

3. The diameter of the wire is measured automatically when the robot touches the wire.

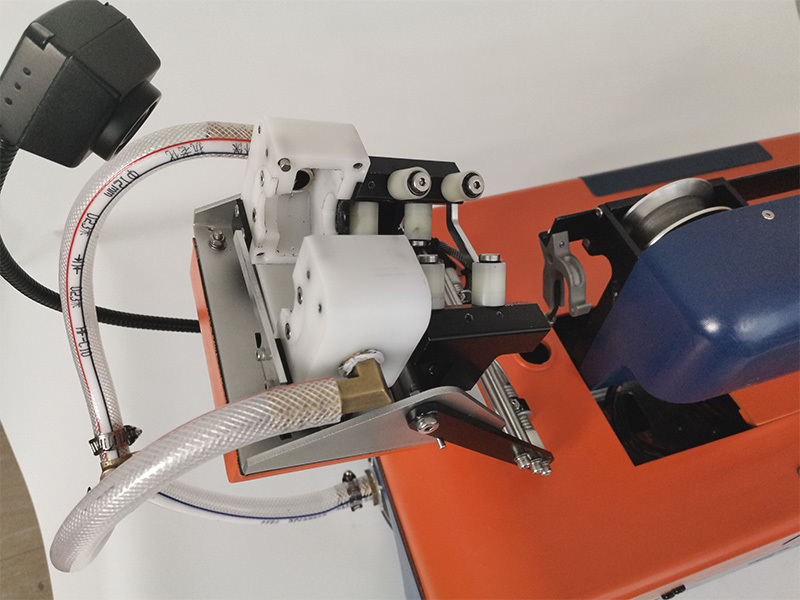

4. Push one button to start “automatic coating”, the insulating glue evenly coated on the surface of the bare wire, and the robot automatically stops when it reaches the end of the line to complete the offline process.
5. The robot will stop automatically when it lands on the ground, and the hook falls off automatically when the sling is slack.
6. The robot can operate without power failure. After the insulating adhesive is cured, the insulation transformation of bare wires is completed.

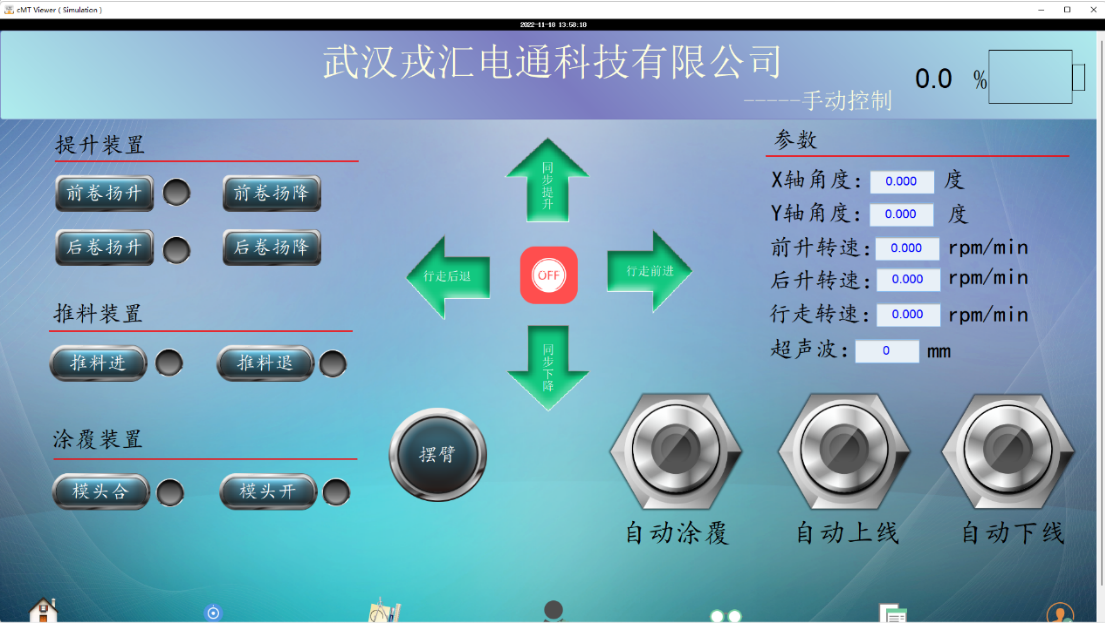

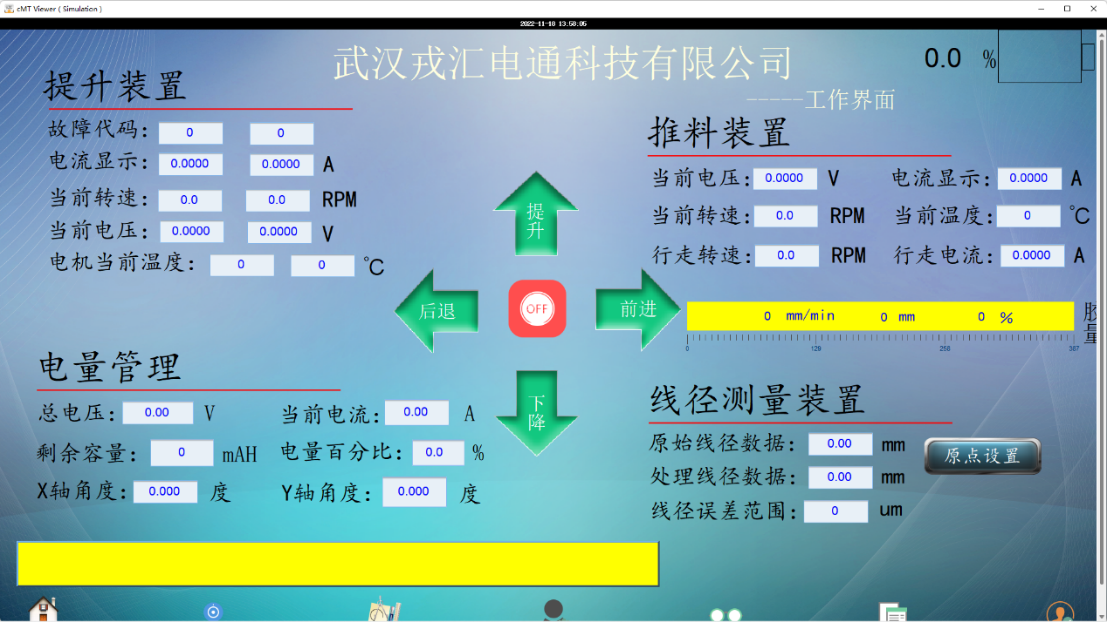

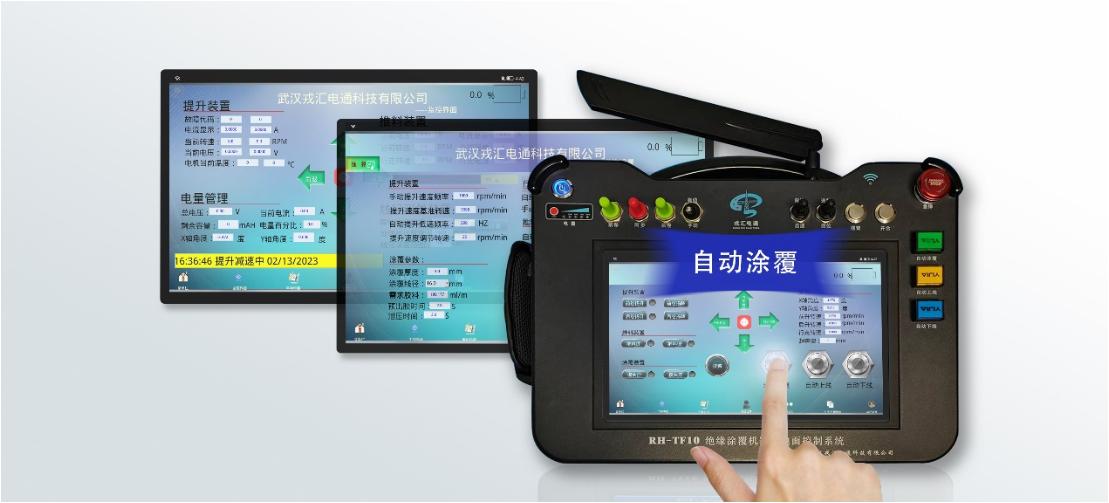

7.Adopt multi-sensor fusion technology to realize intelligent operation of equipment. Adopt MIMO wireless communication which can simultaneously transmit multi-channel video signals, control instructions and equipment status parameters to monitor machine status in real time.
8. The whole machine weighs 21kg and is characterized by ultra-light weight and high efficiency. Especially it is suitable for the insulation transformation of small wire diameter and old line.
Parameters
Ultralight: RH-TF01S2
Model structure:Single barrel/ Double winch/ Double arm wheels on the same side
Function: Wire diameter measurement、lifting balance、multi-speed regulation、video channel 2、voice prompt.
Wire specification: LGJ35/6 ~ LGJ150/8
Wire diameter: 8.16~16
Weight: ≤ 21 Kg
Maximum loading volume: 6.5 L
Walking speed: ≤ 9.4 m/min
Climbing angle: ≤ 15 °
Coating thickness: 2~4mm
Endurance time: ≥ 4 H
Equipment size: 770(L)× 295(W)× 376(H)
