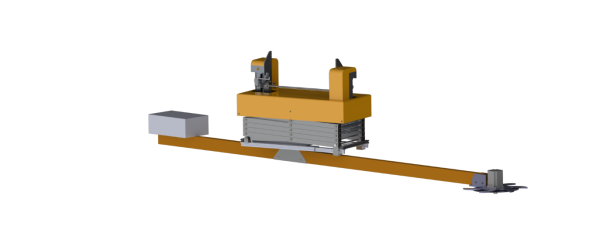

Tree Barrier Clearing Robot Solution
Classification:
Smart Power
Solve problems
It can realize the pruning of tree barriers under the line under in the case of 10kV overhead line without power failure.Ensure that sufficient safety distance is maintained between the line and the tree barrier and improve the safety and efficiency of tree barrier removal work.
Parameters
Model: RH-QZ01
Applicable wire diameter: 35-240mm ²
Vertical obstacle clearance range:the insulating brackets of the upper and lower machines have different lengths and can be replaced.Tree barriers can be removed within 4 meters below the conductor wire.
Horizontal obstacle clearance range: The saw can swing and clear tree barriers within a range of 4 meters (2 meters on the left and right).

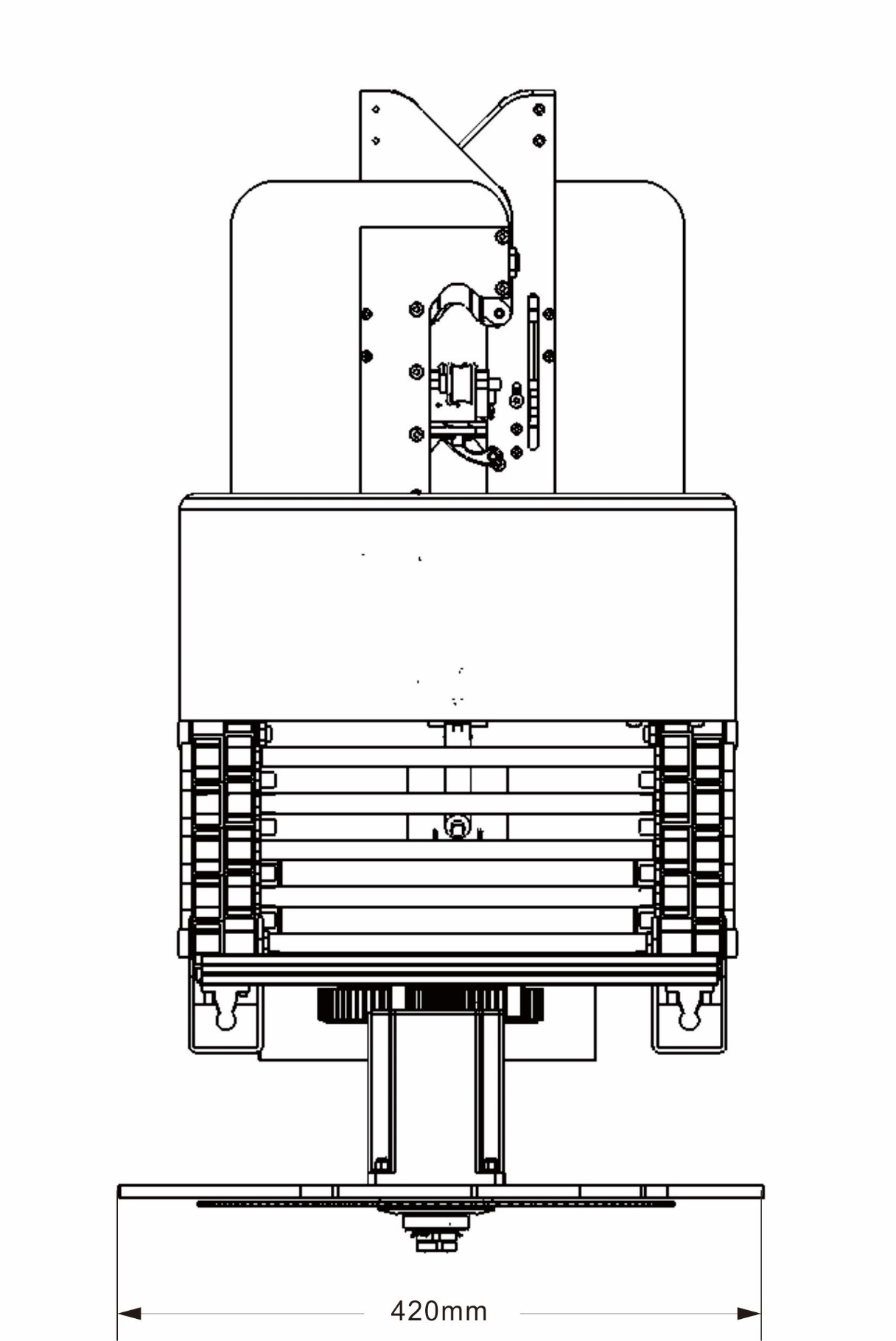

Dimensions
Technical advantages
No power outage required! (Tree barriers under the line can be cleared without power outage of the line)
No need to ascend! (The tree barrier live removal robot can go online autonomously, without personnel climbing operations)
Safe and efficient! (Remote control operation has no risk of electric shock, and the robot obstacle removal operation time is shorter and more efficient)

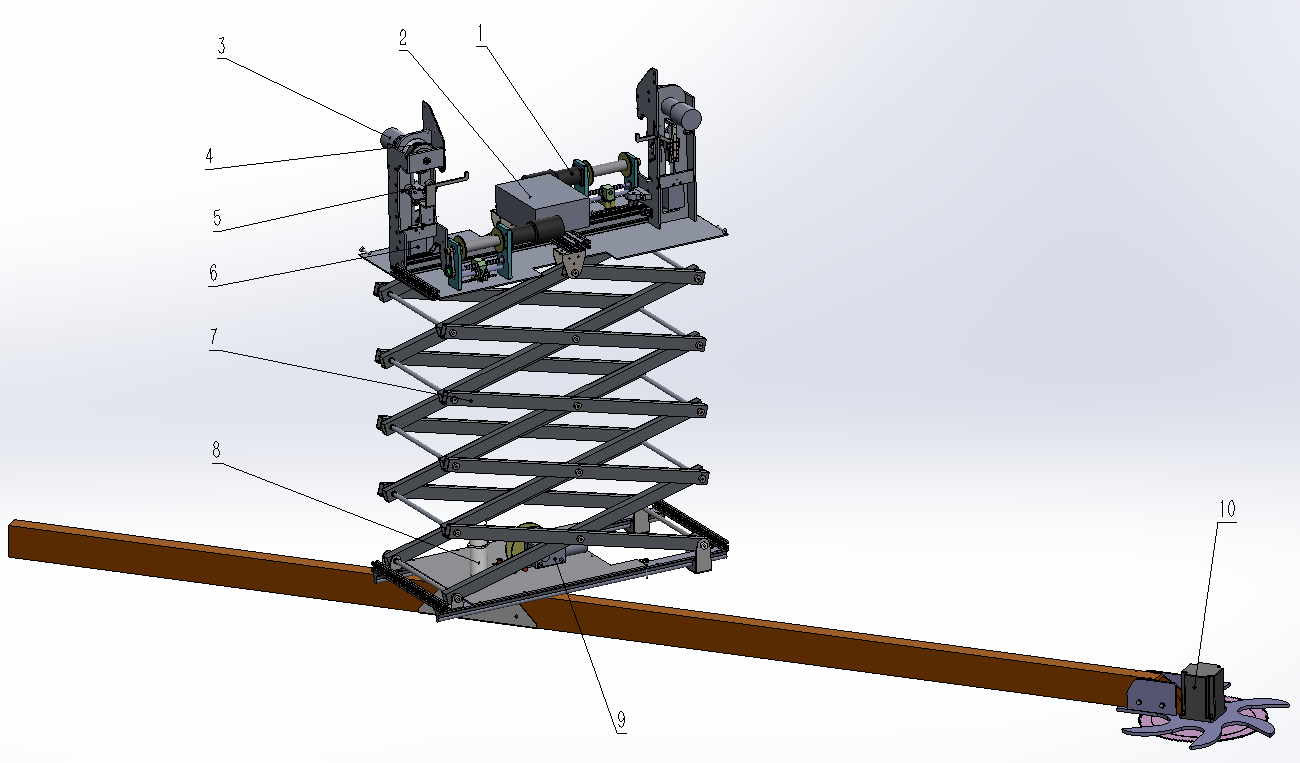

Fig.1 Schematic diagram of host structure design
1 Winch engine 2 Accumulator 3 Travelling motor 4 Walking wheel 5 Pressing wheel
6 Compression motor 7 Lifting frame 8 Rotating arm motor 9 Telescopic motor 10 Saw head
